Ever tried to build a robot and wondered, “Which motor should I use?”
Picking the wrong one can mean the difference between a robot that dances across the floor and one that can’t take a single step.
We’re making motors simple, with stories, analogies, and tips you’ll never forget.
The STEAMDivas way as told by RobotDiva.
As told by RobotDiva
Topic Summary
Motors are the muscles of your robot. They take electrical energy and turn it into motion, but not all motors are the same. Choosing the right one is like picking the perfect shoes wear flip-flops in the snow and you’re in for a bad time!
In this lesson, you’ll:
Learn the three main motor types used in robotics.
Understand torque vs RPM with a fun bicycle analogy.
Use a motor selection flowchart to pick the right one for your project.
See real-world examples of each motor in action.
What Are Motors?
Motors take electrical energy and turn it into motion.
In robotics, you’ll mainly see three types:
DC Motors – The freestyle dancers of the motor world
Stepper Motors – The chess players of precision movement
Servo Motors – The divas who hit every pose perfectly
DC Motors – The Party Animals
How they work: Give them voltage, they spin. That’s it!
Pros: Fast, affordable, great for continuous motion like wheels or fans.
Cons: Not great for exact positioning, they just keep spinning until you tell them to stop.
Common Uses: Robot cars, conveyor belts, small fans.
Analogy: DC motors are like party animals on the dance floor, all energy, no counting steps!
Stepper Motors – The Precision Masters
How they work: Move in small, exact steps instead of spinning freely.
Pros: Perfect for precise positioning, can hold position without slipping.
Cons: Slower, can consume power even when not moving.
Common Uses: 3D printers, CNC machines, robotic arms.
Analogy: Steppers are like a clock hand ticking, each move is deliberate and counted.
Servo Motors – The Pose-Holding Superstars
How they work: A DC motor, gearbox, and sensor all in one. You tell it a specific angle, and it moves there, and holds it!
Pros: High precision, strong torque for size, easy angle control.
Cons: Limited movement range (usually 0–180° or 0–360° usually specialized up to 360° unless continuous rotation).
Common Uses: Grippers, joints, steering mechanisms, camera gimbals.
Analogy: Servos are like ballerinas , they hit a pose and hold it with style.

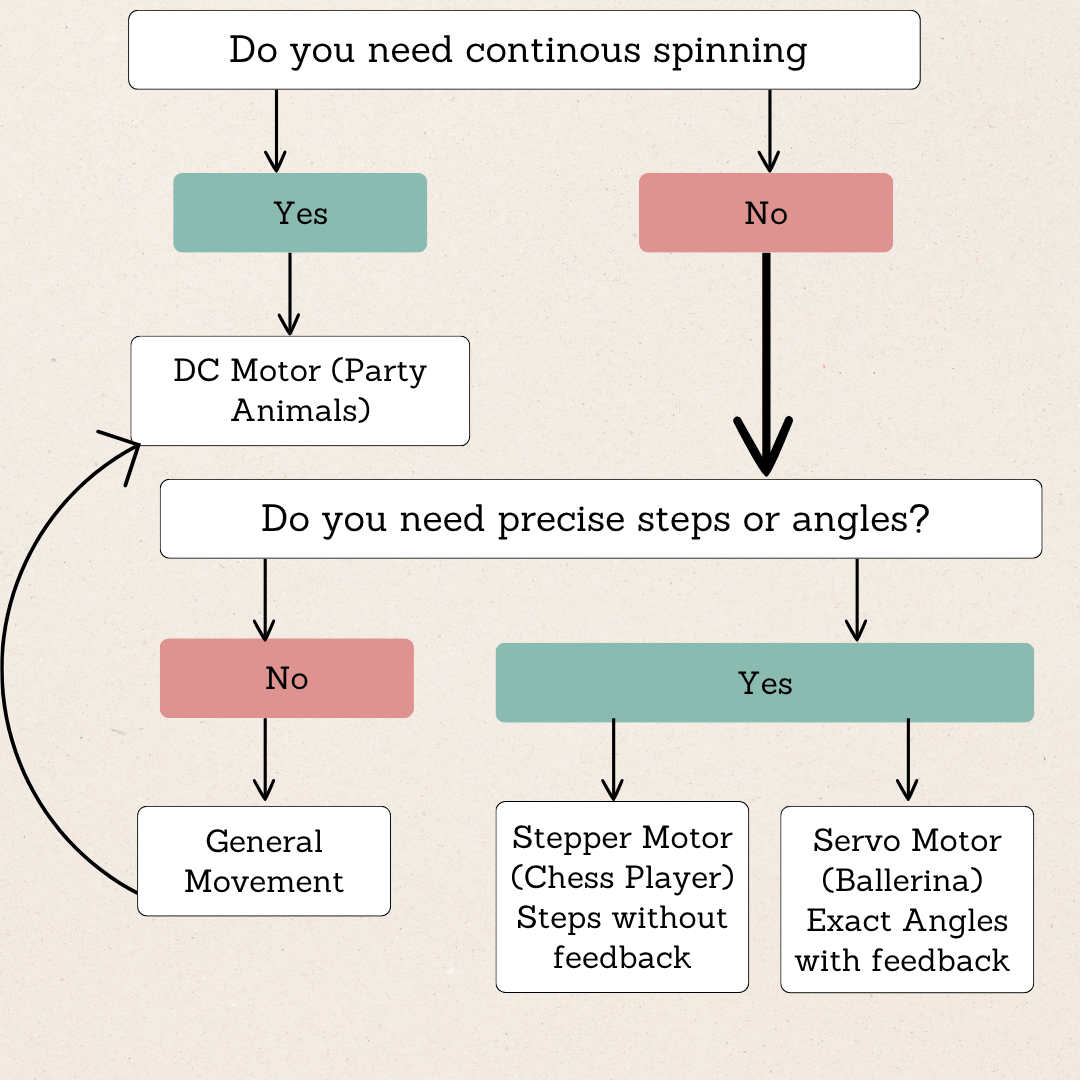

How to Choose the Right Motor
What’s the job?
Continuous spinning? → DC motor
Precise positioning? → Stepper or Servo
How much strength (Torque) do I need?
Torque = the motor’s rotational force.
Overestimate — better to have too much than not enough.
How fast should it go? (RPM)
High RPM = speed, low torque
High torque = strength, low speed
Use gearboxes to balance both.
How accurate should it be?
Steppers and servos = precision
DC motors = general movement
What’s my power source?
Match voltage & current to your motor’s needs.
What’s my budget?
DC = most affordable
Stepper & Servo = more expensive but more precise
Where will my robot live?
Indoors? Outdoors? Dust? Water?
Look for IP ratings for protection
Torque vs RPM – The Tug-of-War
Bicycle Analogy:
Imagine riding a bike uphill:
When you start pedaling from a stop, it’s hard. You push with a lot of force (high torque), but you don’t go very fast (low RPM).
As you gain speed, pedaling feels easier. Your legs move faster (higher RPM), but you’re not pushing as hard (lower torque).
At your fastest (no load), you’re spinning the pedals quickly (high RPM) but barely pushing (low torque).
Think of torque as your pushing power and RPM as your speed.
RPM stands for Revolutions Per Minute, think of it like how fast the pedals on a bicycle are turning.
In robots (and vehicles), higher RPM usually means faster wheel movement, which equals higher speed.
Torque, on the other hand, is your pushing power.
Motors work the same way as riding a bicycle uphill
At very low speeds, a motor can give its maximum torque (called “stall torque”).
As the motor spins faster, torque decreases.
Why this matters:
Need high torque? Run your motor at lower RPM — perfect for lifting, pushing, or climbing.
Need high speed? Go for higher RPM — great for racing robots or spinning fans, but you’ll trade away pushing power.
Key takeaway: Most motors have maximum torque at low speed (stall torque) and lose torque as speed increases. Match the balance to your project needs.
Real-Life Examples
Robot Car: DC motors for fast movement.
Drawing Arm: Stepper motor for exact positioning.
Gripper: Servo motor for precise finger angles.
Why This Matters in Robotics
Motors are key in Motion Subsystems.
Our project Lily~Bot Dancing and our next project Bathroom Buddy build requires motion subsystem to meet their goals.
By understanding DC, Stepper, and Servo motors now, you’ll be ready to choose exactly what you need for your robot’s motion subsystem. As we did to help us in our robot dancing as in Lily~Bot dancing project or following a line like the Bathroom Buddy project.
Your Next Steps
Watch the full Motor Mania video on YouTube.
Check out our LilyBot Dancing build, and you’ll see DC motors powering her dance moves.
Experiment with motors in our Lily~Bot Dancing project and Bathroom Buddy project.
Share your motor experiments and tag us, #RobotDiva, we might feature you in a future episode!
